Wholesale HS0451 | 45 Degree Slide-on Hydraulic Kitchen Concealed Hinges Manufacturer and Supplier

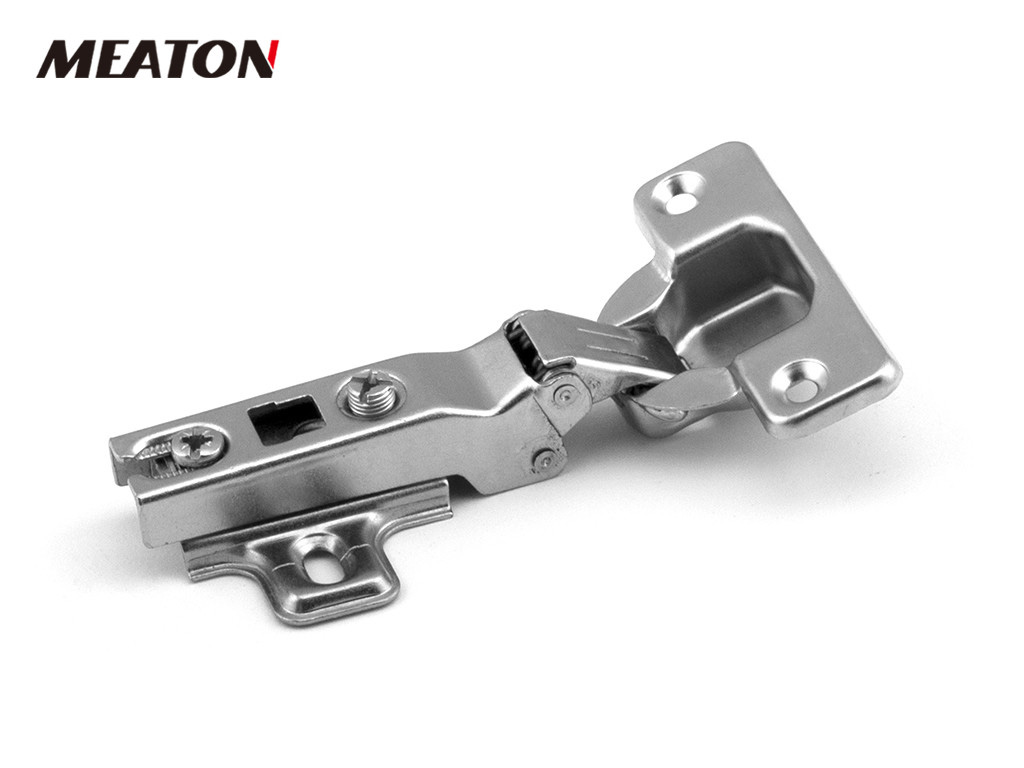

HS0451 | 45 Degree Slide-on Hydraulic Kitchen Concealed Hinges

Short Description

Opening Angle – 95 Degree. Suitable for installation of the side panels without 90 degree angle.

Product Detail

Product Tags

HS0451

45 Degree hinges are for corner cabinet of furniture. 45 Degree does not mean opening angle of hinges, 45 Degree is a angle between cabinet walls and doors when doors are closed. Opening angle of this type of hinges are 95 Degree.

Technical Specifications

• Main material: cold-rolled steel.

• Closing angle: 45°.

• Opening angle: 95°.

• Dia. of hinge cup: 35mm.

• Depth of hinge cup: 11.3mm.

• Door(C) dimension: 3-7mm.

• Door thickness: 14-23mm.

Product Parameters

Finish	Nickle plate
Material	Cold-rolled steel
Angle	45°
Dia of hinge cup	35mm
Depth of hinge cup	11.3mm
Door thickness	14-23mm
Installation	General type/slides-on
Size	Overlay, half-overlay, insert
Weight	82-93.5g±3
Opening & closing cycle	50,000 times
